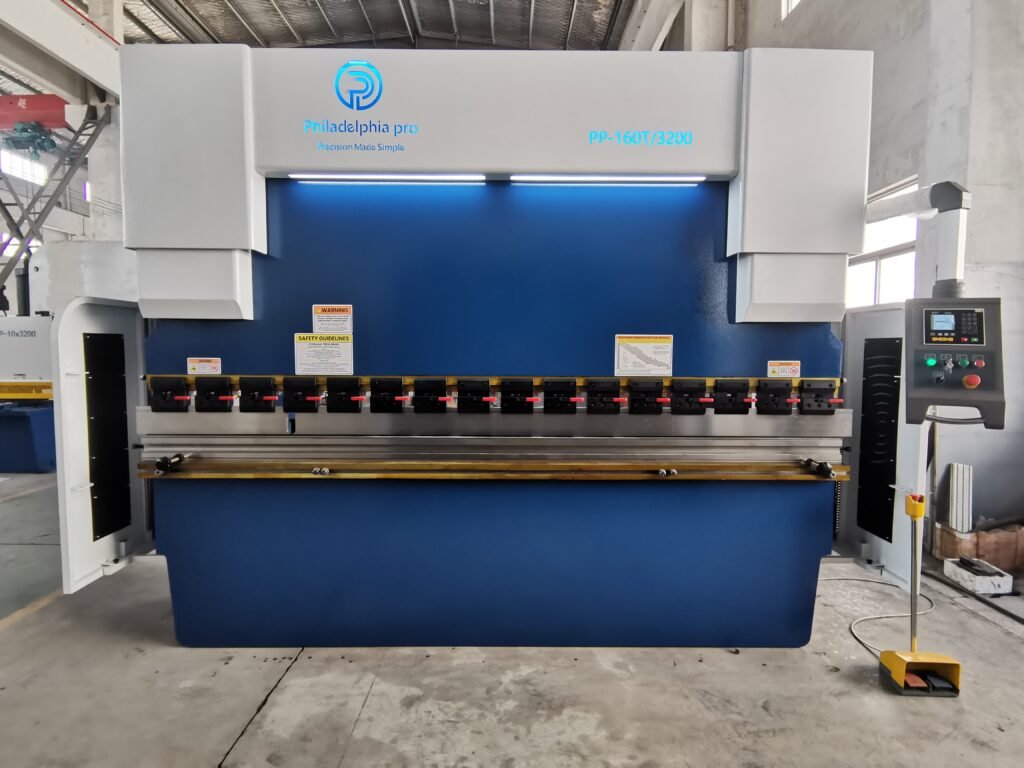

| Hydraulic Press Brake Machine | Model: PP67K-160T/3200 | Brand: Philadelphia PRO | Made: China | |
| Technical Data | ||||
| Nominal Force | 1600 | KN | ||
| Length of worktable | 3200 | mm | ||
| Length of walls | 2600 | mm | ||
| Ram stroke | 160 | mm | ||
| Distance of back guage | 600 | mm | ||
| Opening height | 445 | mm | ||
| Depth throat | 350 | mm | ||
| The running Speed of ram (No load) | 70 | mm/s | ||
| The running speed of ram (full-load) | 8-9 | mm/s | ||
| The running speed of ram (return) | 60 | mm/s | ||
| Main motor | 11 | kW | ||
| Gear pump | 25 | L | ||
| Main cylinders | 2 | Pieces | ||
| Dimension | 3700×1900×25 | mm | ||
| Net weight | 10500 | kgs | ||
| Main Technical Data | ||||
| CNC system | E21(Estun,China) | |||
| Main motor | JUNTE(JIANGSU) | |||
| Hydraulic System | Rexroth(Germany) | |||
| Ball screws | Taiwan | |||
| Linear guide ways | Taiwan | |||
| Connector | JS(Germany) | |||
| Seal rings | NOK (Japan) | |||
| Main electrical elements | Schneider(France) | |||
| Standard dies | Shanghai(China) | |||
| Pump | Shanghai(China) | |||
| List of Accessories parts | ||||
| Pedal Switch | 1 piece | |||
| Front support | 2 pieces | |||
| Foundation bolts | 4 pieces | |||
| Spring washer | 4 pieces | |||
| Nut | 4 pieces | |||
E21 Numerical Control System
- Both Chinese and English
- Intelligent location of x shaft and y shaft can be adjusted manually, removal mechanical hand location device.
- Built-in pressure maintaining time, unloading time delay setting function.
- One key for backup and recovery.
- Multi-step programming.
The panel key is the micro switch.
